A fascinating electrophysiology case. What is this wide complex tachycardia, and how best to manage it?

This was written by Magnus Nossen from Norway

The patient is female in her 80s with a medical hx of previous MI with PCI and stent placement. She also has a hx of paroxysmal atrial fibrillation and is on oral anticoagulant treatment. She had a single chamber ICD/Pacemaker implanted several years prior due to ventricular tachycardia. The last echocardiography 12 months ago showed HFmrEF.

She presented to the emergency department after a couple of days of chest discomfort.

The ECG below was recorded.

What is your assessment? How would you manage this patient?

The ECG was interpreted as showing atrial flutter with 2:1 conduction. The patient was deemed stable and the decision was made to put the patient on IV amiodarone. Do you agree with this strategy? Would you treat the patient in any other way? What about the ST segments, do they worry you? Are you confident there is no ischemia? How can you better assess the ST segments?

Answer: The ECG above shows a regular wide complex tachycardia. The heart rate is about 130 bpm. The heart rate could be compatible with that of a 2:1 conducted atrial flutter. Also, lead I could give the initial impression of showing flutter waves. Looking more closely at the tracing however, it becomes apparent that atrial activity is not consistent with atrial flutter. Clear atrial activity is visualized in the inferior leads where inverted P waves are seen buried in every other ST-segment. P waves are of negative polarity in the inferior leads, meaning they are conducted retrogradely from the AV node. Said differently, the ECG shows a rather slow ventricular tachycardia with a 2:1 VA conduction.

If the patient is hemodynamically stable, iv amiodarone could be considered in such a clinical situation. However, this patient is having chest discomfort, and by definition then she should be considered not to be stable.

Is this:

1. Primary VT, and the VT with tachycardia is causing ischemia with chest discomfort (supply-demand mismatch/type 2 MI)?  Or

2. Ischemia from ACS causing the chest discomfort, with VT another consequence (or coincidence)?

In either case, prompt cardioversion is indicated.

Cardioversion will address the rhythm problem immediately, also if the chest discomfort subsides when SR is restored, ischemia from ACS becomes much less likely.

The ECG in sinus rhythm will also be more easy to assess with regards to ischemia

The VT was not appreciated and patient was admitted with telemetry and IV amiodarone. During the night the rhythm changed. How do you interpret the below ECG?

The above ECG shows a ventricular paced rhythm with a heart rate of 60. Pacing spikes are most easily appreciated in the inferior and early precordial leads. There is retrograde conduction through the AV node with retrograde P waves best seen superimposed on the last part of the QRS. (Most readily seen in V1, red arrows)

After the VT had terminated, the patient became hypotensive, with cool and clammy skin. A bed side echocardiography revealed a severely depressed LVEF of about 20-25%.

The pacing rate was increased without clinical improvement and the patient was transferred to the ICU for closer monitoring/treatment. When looking at the above ECG you will find that the QRS following ventricular pacing is very long. The QRS duration measured in lead II (shown below) is about 6.5 small squares in width (260ms). This is very prolonged. Such a QRS duration inevitably is associated with profound ventricular dyssynchrony. Seeing as the patient has a single chamber ICD/pacemaker, pacing the ventricle will also lead to AV dyssynchrony that will compromise ventricular filling, further impairing hemodynamics.

It was apparent that the ventricular pacing was detrimental to the patient’s hemodynamics. The ICD/pacer back up rate was lowered to 40/min (VVI 40) in an attempt to promote intrinsic activity and intrinsic AV conduction.

The patient’s own underlying atrial rhythm is revealed at a heart rate in the mid 50s.

AV synchrony and physiologic ventricular depolarization the hemodynamics improved.

The above ECG was recorded after the lower rate limit (LRL) of the ICD/pacer was set @40bpm. The ECG shows what is likely an atrial ectopic rhythm with a left anterior hemiblock. There are QS-waves in V1-V4 with a fragmentation/notch in the last part of the QRS. There is some STE.

These are all findings that can be expected with left ventricular aneurysm.

This ECG does not show any sign of OMI.

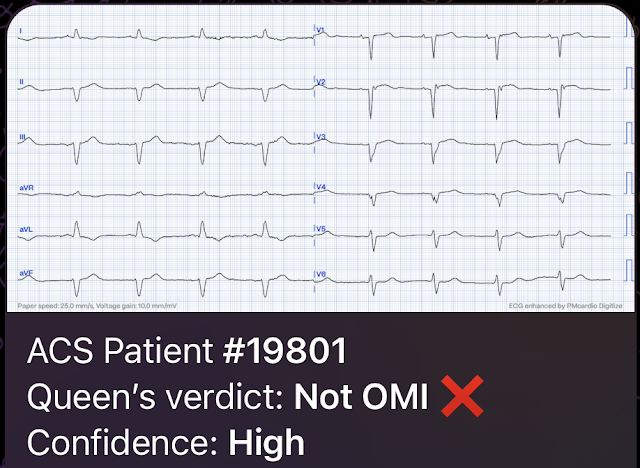

The assessment of the ST segments and T waves for ischemic changes can be done with much more confidence once normal rhythm and impulse propagation is restored. The Queen of Hearts also recognizes that this pattern of STE is not indicative of active ischemia and her interpretation is NOT OMI with high confidence.

YOU TOO CAN HAVE THE PM Cardio AI BOT!!  (THE PM CARDIO OMI AI APP)

If you want this bot to help you make the early diagnosis of OMI and save your patient and his/her myocardium, you can sign up to get an early beta version of the bot here.  It is not yet available, but this is your way to get on the list.

https://share-eu1.hsforms.com/18cAH0ZK0RoiVG3RjC5dYdwfyfsg

Summary: This patient had a CTO (chronic total occlusion) of the LAD since many years prior with a known LVA on echocardiography. Slow VT below the detection rate of the ICD lead to worsening heart failure and low stroke volume. Cardiac output (CO) was being maintained by the tachycardia. Post conversion of VT the patient had low output cardiac failure and became unstable and hypoperfused. Ventricular pacing was detrimental with regards to hemodynamics. Lowering the back up rate (LRL) of the ICD/pacer allowed for an intrinsic rhythm with physiologic AV conduction and normal AV synchrony with resultant increase in stroke volume and cardiac outpt. After atrial rhythm/SR was restored the patient slowly improved. Medical treatment for heart failure was optimized and after a few days the patient was discharged with referral to VT ablation procedure.

Learning points

*A patient with tachydysrhythmia and chest discomfort needs immediate rhythm or rate control.
*Sometimes a slower rate with intrinsic conduction gives better CO than higher rate pacing.
*Temporarily decreasing the LRL of the ICD/Pacemaker can promote intrinsic depolarization which is beneficial when assessing ST segments and T waves for ischemia.

===================================

MY Comment, by KEN GRAUER, MD (1/10/2024):

===================================

Highly insightful post by Dr. Magnus Nossen — that brings home a number of very important points.

• The patient is an older woman with known coronary disease and an ICD-Pacemaker implanted because of a history of VT (Ventricular Tachycardia). The patient also has a history of AFib and HFmrEF ( = Heart Failure with Minimally-Reduced Ejection Fraction).
• This patient presented to the ED “after a couple of days of chest discomfort”.

For clarity in Figure-1 — I have reproduced and labeled this patient’s initial ECG.

QUESTION:

• For HOW LONG has this patient been in VT?

Figure-1: I have labeled the initial ECG in today's case. (To improve visualization — I've digitized the original ECG using PMcardio).

MY Thoughts on Today's CASE:

To review — Today's patient was a woman in her 80s, with known coronary disease, known heart failure, and a history of VT — who presented to the ED "after a couple of days of chest discomfort". She was felt to be hemodynamically stable at the time ECG #1 was recorded — with this initial ECG being interpreted as showing AFlutter (Atrial Flutter) with 2:1 AV conduction. Given the treating physician's impression of hemodynamic stability with the rhythm in Figure-1 — the patient was started on IV amiodarone, and treated for a number of hours until this initial rhythm changed during the middle of the night.

• Given the above scenario — there is much to comment on ...

Was Today's Patient Hemodynamically Stable in Figure-1?

The 1st Priority in treating any patient with tachycardia — is to determine IF the patient is hemodynamically stable. This is because IF a patient in a sustained tachycardia is "hemodynamically unstable" as a direct result of the fast rate — then regardless of whether the rhythm is SVT (SupraVentricular Tachycardia) or VT (Ventricular Tachycardia) — immediate synchronized cardioversion is indicated.

• While fully acknowledging that "Sometimes ya gotta be there!" — in order to optimally assess the patient — the clinical definition of hemodynamic stability is for the patient to be without significant symptoms such as chest pain, shortness of breath, hypotension and/or mental status changes — as a direct result of the fast heart rate.
• As per Dr. Nossen — the fact that today's patient was having chest discomfort in association with the rhythm in Figure-1 — meant that by definition, this patient was hemodynamically "unstable" — with clear indication for immediate cardioversion instead of being treated with IV amiodarone over a period of hours.
•

• KEY Point: Additional historical features in today's case that strongly favor electrical cardioversion sooner rather than later include: i) Older age of the patient (ie, this 80-year old woman being less likely to tolerate any sustained tachycardia for an extended period of time); ii) A known medical history of coronary disease, heart failure and documented sustained VT in the past; — and, iii) Statistical likelihood that even before we look at this patient's ECG — there is a greater than 90% chance that she is in sustained VT.

What are the CLUES to VT in Figure-1?

The ECG in Figure-1 has to be interpreted as VT (Ventricular Tachycardia) — until proven otherwise! As I have discussed the user-friendly and time-efficient criteria I favor for distinction between VT vs SVT rhythms (with either preexisting BBB or aberrant conduction) — I'll refer those interested in more detail to My Comments in the May 5, 2020 — the April 2, 2022 — and the February 14, 2022 posts in Dr. Smith's Blog. Reasons why I'd estimate the likelihood of VT for the rhythm in Figure-1 at over 90% include the following.

• The ECG in Figure-1 is a regular WCT ( = Wide-Complex Tachycardia) at ~130/minute, without clear sign of sinus P waves. Pre-Test Likelihood that a regular WCT without P waves will turn out to be VT is ~80% in the literature. This figure goes up to ~90% Pre-Test Likelihood — IF the patient is "older" (ie, an adult of a "certain" age) — and if the patient has underlying heart disease. As a result — Statistical Likelihood that the regular WCT without P waves in Figure-1 will turn out to be VT is at least 90% even before we look at the actual ECG!
• Because of this 1st bullet — We need to always assume VT for such rhythms until we prove otherwise, and treat accordingly. This does not mean that all patients need to be immediately shocked — but it does mean that since 90+% of such rhythms will turn out to be VT, that we need to assume VT until proven otherwise. This was not done by the treating clinicians in today's case.
•

• Now that we are looking closer at ECG #1 — reasons why statistical likelihood of VT goes up to over 95-98% in today's case are: i) The QRS complex is exceedingly wide (Using the vertical BLUE line as the starting point of the QRS — and the vertical YELLOW line as the end point of the QRS — QRS duration is >0.16 second); ii) There is almost extreme axis deviation (ie, the QRS is all negative in lead III — albeit not all negative in lead aVF); iii) There is delay in initial activation (ie, Note especially how long it takes for the QS complex in lead V4 to reach its lowest point); and, iv) QRS morphology does not resemble any known form of conduction defect.
• It is this last criterion (ie, not resembling any known form of conduction defect) — that is the most suggestive of VT to me in today's case. Although there is superficial resemblance of QRS morphology to LBBB conduction (because of the upright QRS in leads I,aVL,V6 — and the predominantly negative complexes in leads V1-thru-V4) — closer scrutiny suggests extremely atypical morphology for LBBB conduction in multiple leads. This highly atypical morphology includes: i) Exceeding wide initial Q waves in leads I,II (within the dotted RED ovals in these leads) — and in aVL,V5,V6 (wide Q waves like this are virtually never seen with supraventricular conduction in these leads); — and, ii) An extremely wide initial R wave in lead V1 (within the dotted RED oval — with this morphology also virtually never seen with LBBB conduction that never normally manifests more than a small, slender initial r wave in lead V1).
• To Emphasize: Statistical odds of over 90-95% is not the same as 100% likelihood. There is almost always the possibility of exceptions (ie, prior infarction or cardiomyopathy that might result in a very abnormal baseline tracing). But over 95% likelihood in today's case supports the need to assume VT until proven otherwise.

Why was it Wrong to Think the Rhythm was AFlutter?

I have emphasized on many occasions in Dr. Smith's ECG Blog how AFlutter is by far (!) the most commonly overlooked arrhythmia (See My Comment at the bottom of the page in the May 1, 2023 — and the November 12, 2019 post, among others). That said — there is strong evidence in Figure-1 that tells us AFlutter is not present here.

• Atrial activity with AFlutter is extremely regular — and typically manifests a "sawtooth" pattern, that most often is seen in one or more of the following leads = leads II,III,aVF; aVR; and/or lead V1. However, there is no "sawtooth" pattern to the rhythm in Figure-1. The treating clinician mistook the 2 negative deflections within each R-R interval of lead I as "flutter activity" — but it would be highly unusual to only see flutter waves in lead I, but not in any of the 5 leads I cited above.
• I've drawn vertical RED lines under the negative deflections for a series of beats in lead I. It should be immediately obvious that the interval between each of these vertical RED lines is not equal (whereas with AFlutter — there typically is precise equality in the intervals between one flutter wave and the next).
• Instead (as per Dr. Nossen) — there is retrograde atrial conduction every-other-beat, in the form of a negative P wave that occurs at a fixed RP' distance after every-other-QRS complex (YELLOW arrows seen in each of the inferior leads). This intermittent 2:1 retrograde atrial block is consistent with VT — but rules out any possibility of AFlutter.
•

• PEARL: I find using calipers is the most time-efficient way of diagnosing AFlutter with relative certainty from an initial ECG. Starting from the premise that AFlutter should always be considered until proven otherwise in any regular supraventricular rhythm at a rate close to 150/minute (ie, 130-170/minute range) when sinus P waves are not clearly seen — I set my calipers to precisely half the R-R interval. IF the rhythm is AFlutter — then I will almost always be able to precisely "walk out" 2:1 atrial activity in one or more leads on the tracing. Using calipers — it literally takes me no more than seconds to verify 2:1 AV conduction.
• Lewis Leads: Use of another lead system is an easy-to-do but often forgotten application — that can be highly effective for revealing underlying atrial activity that was not evident on the standard ECG tracing (Please see my last Figure in the November 12, 2019 post of Dr. Smith's Blog for a reminder on how to apply Lewis Leads).

For HOW LONG was Today's Patient in Sustained VT?

If we return to the Question that I posed at the very beginning of My Comment — I asked for HOW LONG was today's patient in VT?

• Remember that this patient presented to the ED “after a couple of days of chest discomfort”. The heart rate during the WCT rhythm was not overly fast (ie, ~130/minute). And, presumably from the history we are provided with — no ECG was done during the "couple of days with chest discomfort" until the patient finally presented to the ED, and ECG #1 was recorded.
• As I discussed in My Comment at the bottom of the page in the April 2, 2022 post in Dr. Smith's ECG Blog — I am aware of many cases of sustained VT in which the patient remained awake and alert for hours. I'm also aware a number of cases (including one at my former hospital) — where the patient was awake and alert in sustained VT for several days! Therefore — Just because a patient remains awake and alert with an adequate blood pressure for an extended period of time does not rule out the possibility sustained VT. If the ventricular rate is not excessively fast — and the patient has reasonable LV function — then it is possible possible to remain in sustained VT for hours, and even days.
• The literature supports the premise that it is possible to remain in sustained VT for days at a time (Symanski & Marriott — Heart-Lung 24:121,123, 1995). In this case report — the 69-year old woman (who incidently had a history of both coronary disease and cardiomyopathy) — remained in sustained VT for 5 days without hemodynamic deterioration. During this time, she was treated in the hospital with multiple antiarrhythmic medications including Adenosine, Verapamil and Digoxin. On her 5th hospital day — she was given Amiodarone, which successfully converted the rhythm. Luckily — she "survived" the above treatment course (as each of the first 3 drugs that were given could have been fatal, given their tendency to precipitate VT deterioration in the setting of severe underlying coronary disease).
•

• To Emphasize: This case study by Symanski and Marriott is from 1995. Many advances in treatment have occurred in the 28 years since this article was published. That said — misdiagnosis of WCT rhythms for the same reasons cited by the authors remains all-too-common — so the lessons put forth in this 1995 article remain relevant. I suspect the patient in today's case may have been in sustained VT since the onset of her chest discomfort, that began "a couple of days earlier" — but this possibility was discounted because her physicians did not believe that anyone could remain alert and hemodynamically stable in sustained VT for "a couple of days".
