Sunday, July 30, 2017

Chest Pain and ST Elevation on the Monitor

A 50-something patient who had just had a median sternotomy called 911 for chest pain.

The medics put him on the monitor and saw this:
Note the apparent massive ST Elevation in what is lead MCL1 (similar to V1)
What do you think?

This was worrisome to them.  They always record a 12-lead, and did so this time:
There is a large amount of ST elevation in V1-V3.
The medics considered this diagnostic of STEMI and activated the cath lab.
What do you think?


















On arrival, I viewed this ECG and immediately de-activated the cath lab.  Even without viewing an old ECG, one can know that this ST elevation is entirely secondary to LVH.  The morphology is classic and you just have to learn to recognize it.  There is a deep S-wave in each of V1-V3, so the ST elevation is abnormal repolarization that is a result of abnormal depolarization: it is "secondary" ST elevation, not "primary."

We recorded another ECG in the ED:
This was identical to the patient's previous ECG.


How about that rhythm strip?

1.  The S-wave is cut off on the rhythm strip, so the ST elevation cannot be interpreted in the context of the QRS, as it must be!

2. Rhythm strips use different filtering techniques than 12-lead ECGs.  Suffice it to say that you cannot trust ST changes on monitor strips. It is fine if they lead you to obtain a 12-lead ECG, but they should never be trusted by themselves, as they are very often misleading.


Learning Points:

1.  Learn to recognize the ST elevation that is the result of LVH.  See this detailed post on the topic:

LVH with anterior ST Elevation. When is it anterior STEMI?


2.  ST segments on cardiac monitors cannot be trusted, and must be verified by a 12-lead ECG.

Tuesday, July 25, 2017

A Healthy 50-something with new dyspnea on exertion and an interesting ECG

A healthy 50-something who exercises regularly had new onset of dyspnea on even the slightest exertion for the previous 2 days.  He reports he is physically fit and has never had this problem before.  Also reports new onset substernal non-radiating chest pain with exertion that started today.  Patient reports that he had to run today to catch a ride and he could only get a few steps before being completely drenched in sweat and so out of breath he had sit down.

He denies any history of this in the past, denies cardiac history or lung problems.

He is on no medications.

He presented to the ED and had an ECG, which had a very strong clue as to etiology:
What do you think?
The computerized QRS duration is 109 ms



















There is a PR interval of 330 ms.  First degree AV block is generally considered benign. Any PR interval of longer duration than 200 ms is defined as first degree AV block, but the vast majority are still under 300 ms.  330 ms is very long.  The QRS duration is a bit long as well.  The QRS in most healthy adults is less than 100 ms, though it can be up to 110 ms.  A QRS of 109 ms suggests that the site of AV conduction delay may be below the bundle of His and not in the AV node.  This would suggest a serious conduction delay.

The clinical presentation is very worrisome for severe exertional ischemia due to a tight coronary stenosis, but this ECG finding of a very long PR interval may provide an alternative explanation for the symptoms.

Potassium was normal.  Serial troponins were all below the level of detection.

Because of exertional symptoms, he was tested with a treadmill ECG test, and after walking on the treadmill for one minute, he developed AV block progressing with increasing heart rate to second degree block Mobitz II (2:1 block).  His heart rate dropped from 88 to 50, with reproduction of the symptoms.   This was suggestive of infranodal disease (in the bundle of His).

The patient had a dual chamber pacemaker placed.

No etiology was found, but MRI was to be done later as an outpatient.

First Degree AV Block

1. Etiology
a. Increased Vagal Tone, particularly in athletes
b. Hyperkalemia
c. Drugs
---that affect the AV node: (digoxin, beta blockers, non-dihydropyridine calcium channel blockers such as diltiazem or verapamil)
---that affect the Bundle of His: Type 1a antidysrhythmics such as procainamide, quinidine, disopyramide and also type 1c such as flecainide.
d. Myocardial infarction, acute or old.
----When anterior MI, then it is below the AV node (bundle branch or fascicle) and more dangerous.
----When inferior MI, it is the AV node that is ischemic.  It is less likely to progress to complete AV block and more likely to be sensitive to atropine.
e. Underlying AV nodal structural abnormalities
f. Infiltrative diseases such as sarcoidosis, amyloidosis, and hemochromatosis
g. Lyme Carditis
h. Other

2. Sites of delay

AV node is most common.  This is measured by the atrial-His (AH) time measured by His bundle ECG.  Normal AH time is 60-125 ms.  A narrow QRS strongly implies that the site of delay is the AV node.

Bundle of His or lower. Usually associated with a wide QRS.

3. Presentation

There are rarely symptoms of first degree AV block and it is almost always benign. When associated with a wide QRS, it is likely that the block is below the AV node.  This is important because it is more likely to progress to complete heart block.  Especially when there is RBBB + fascicular block + first degree AV block, there is risk of progression to complete heart block.  This situation has the misnomer of "Trifascicular block."  This would literally imply complete heart block if all 3 fascicles were blocked (right bundle, left anterior fascicle, and left posterior fascicle).  But it may indeed progress to complete heart block.  Certainly any symptoms associated with both prolonged PR interval and bundle branch and/or fascicular blocks are very worrisome, especially in the context of ischemia.

See this post on "Trifascicular block"

Symptomatic Bradycardia. So-called Trifascicular Block. Occum's Razor and Hickum's dictum.


Pacemaker syndrome (rare)

If the delay is very long, then the atrium contracts too shortly after the previous ventricular contraction, which leads to incomplete atrial filling and to a decrease in stroke volume and chest discomfort.

Summary:

It was not difficult to determine the significance of the AV conduction delay.  Since the symptoms were induced by exertion, the test of choice was clearly an exercise stress test, and this produced the diagnosis.  Such symptoms would more commonly be due to severe coronary stenosis, but in this case the stress test clearly showed the problem to be AV node conduction.



Article:

Long-term Outcomes in Individuals With Prolonged PR Interval or First-Degree Atrioventricular Block

This was a longitudinal study of 7575 asymptomatic patients in the Framingham study, of whom 124 had first degree AV block at baseline, and were followed up for 35 years.  Compared to those with normal PR intervals, in multivariable analyses, each 20-millisecond increment in PR above 200 ms was associated with an adjusted hazard ratio (HR) of 1.11 for Atrial Fib, 1.22 for pacemaker implantation, and 1.08 for all-cause mortality.  So the hazard ratio for a PR interval of 330 ms would be quite significant.  This study was on asymptomatic patients.

There are other longitudinal studies which did NOT show increased long term risk.











Sunday, July 23, 2017

2 Cases of Resolved Chest Pain with Dynamic Terminal T-wave Inversion

Here are two different series of ECGs in 2 different patients with chest tightness/discomfort that resolved.

Case 1

A 20-something with chest tightness that later resolved.  Blood pressure was normal.


ECG, with chest tightness:


Later ECG, after resolution of chest discomfort



Later, continued pain free


What is your impression?



Case 2

A 50-something with substernal chest pressure all night, now resolved.


 Time zero, pain free


25 minutes, still pain free



6 hours


Next AM


What is your impression?




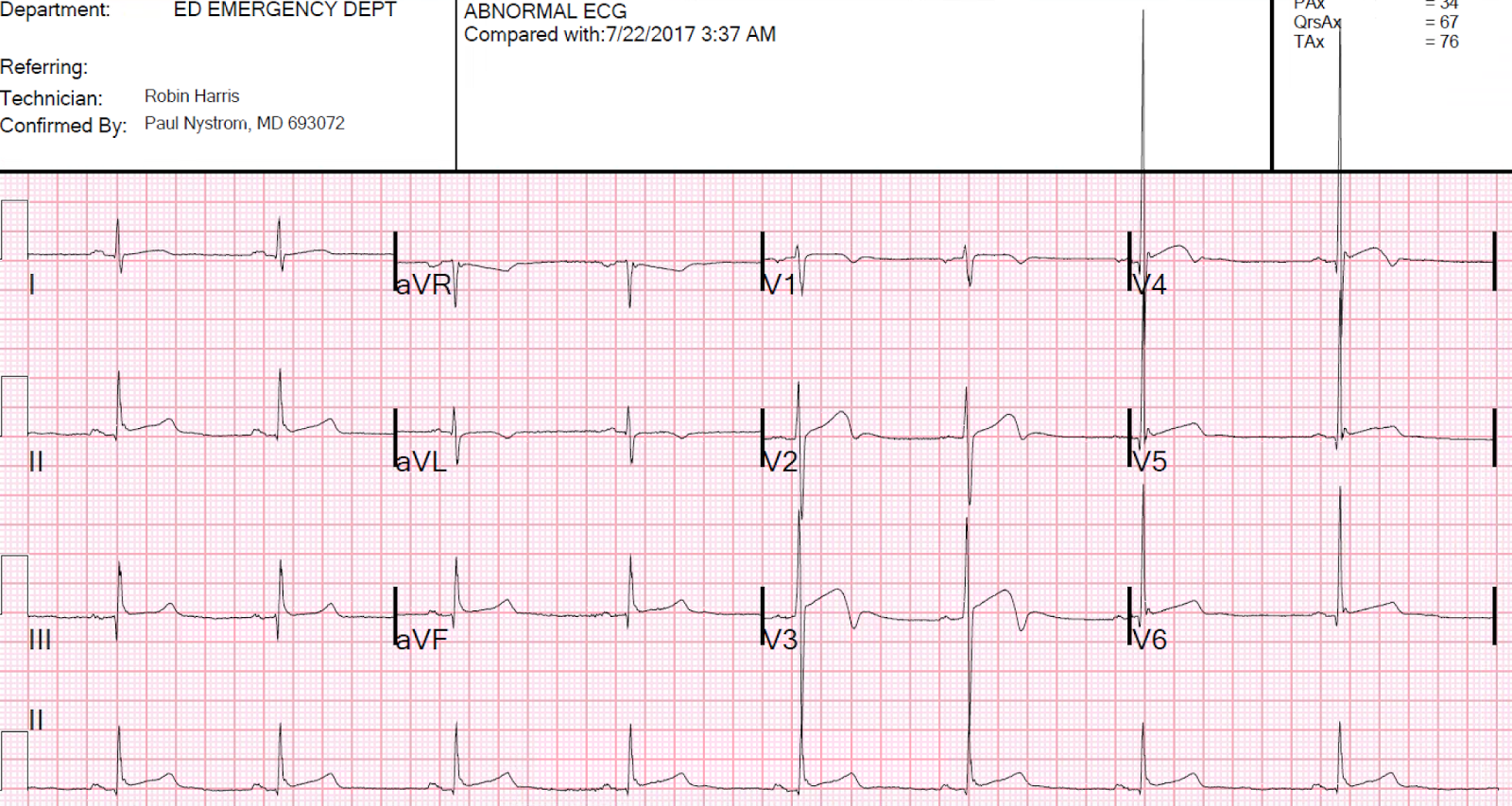

Here are ECGs side by side for comparison:
                   Case 2 is on the left                                                       Case 1 on the right


--Note on the left (Case 2) there is normal QRS voltage, whereas the voltage on the right (Case 1) is very high.
--Notice that on the right (Case 1), V4, along with having high voltage, has a small S-wave and a prominent J-wave.
--On the right (Case 1), in V2 and V3, notice the large U-wave.
--V2 on the left (Case 2) is somewhat of an anomaly, with a qR-wave suggesting incomplete RBBB; try to ignore it for the purposes of this discussion.

These are all features of normal variant T-wave inversion.






Case 1:

This is classic for a benign pattern, especially in a young athlete.  You might be surprised that benign patterns can be dynamic (change with time), but they can be!!

Also telling is that when the patient had pain, he did not have a STEMI pattern.  Since Wellens' syndrome is the pain-free aftermath of an episode of chest pain associated with LAD occlusion, then at the time of active pain at which time an ECG was recorded, the ECG should have shown some evidence of STEMI, or at least of subtle acute LAD occlusion.  This first ECG is a normal variant ST elevation in a young male, with high voltage.  It does not represent LAD occlusion.

In such a case, one should not assume a benign etiology, but use serial troponins to verify that you are correct.  While it is true that, on rare occasion, Wellens' syndrome may have negative serial troponins, all such cases that I have seen were with earlier generation (less sensitive) troponins.

Outcome:

All troponins were below the level of detection up to 16 hours after presentation.


Case 2:

These ECGs are classic Wellens' pattern, but also with an unusual lead V2.  I saw this patient and immediately knew the diagnosis.  The initial troponin I was 1.2 ng/mL (99% URL is 0.030 ng/mL).

He went very quickly to the cath lab and had an 80% thrombotic occlusion of the LAD with TIMI II flow.

The "6 hour" and "Next AM" ECGs are after stent placement.


Learning Points:

1. Not all dynamic terminal T-wave inversion after resolution of chest pain is Wellens' syndrome.

2. Normal Variants may evolve.

3. There are features of normal variants that distinguish them from Wellens' waves.

4. Pretest probability is also important: 20-something vs. 50-something with chest pain.  That said, young people do get atherosclerotic plaque rupture and MI, and are easily dismissed!  See this case:

An intoxicated, agitated, 20-something with chest pain



Other Relevant Posts


Click on this link for a more complete discussion of T-wave inversion normal variants.

This case is amazing: Chest pain, Dynamic ST Elevation and T-waves, and High Voltage


Click here for more PseudoWellens cases.


Pseudo-Wellens' Syndrome due to Left Ventricular Hypertrophy (LVH)




Wednesday, July 19, 2017

What is this rhythm?

Unfortunately, I remember who sent this EKG to me, or the clinical information, but it is a very interesting tracing.

What is it?





Below is an annotated version:



There is isorhythmic dissociation (see below), with escape beats in complexes 1-4 and 9-14.  In beat 4, you can see a bit of a P-wave, and then 5 thru 8 have sinus rhythm.

Aside: "Isorhythmic dissociation:" the P-wave just happens to arrive at the same time as the escape beat, so that the P-wave and QRS are dissociated even though they are happening about the same time ("isorhythmic").   ........AV Dissociation does not always mean AV Block!! There can be dissociation without block, as here.  See more posts below.

Whenever the beat is fully sinus, the QRS is normal.

Whenever it is an escape beat, the QRS has a tall R-wave, along with an inferior and right axis, similar to a left posterior fascicular block (LPFB).

But since there is no LPFB in sinus rhythm, the escape cannot be coming from the AV node; if it were, the QRS would not be different.  [The QRS in sinus rhythm and junctional rhythm are the same, because sinus rhythm goes through the AV node.]

The escape must be originating from a more inferior location that activates the left anterior fascicle preferentially, thus mimicking an LPFB.

1. This confused me, because any beat that initiates in the left anterior fascicle should also have a RBBB morphology, which is not present here.

2. Also: why does the sinus rhythm come and go?


I asked my very smart friends Ken Grauer and Christopher Watford for their opinions.


Ken gave this great explanation, also referring to insights by Christopher:

"It’s a beautiful example of AV dissociation beginning with beat #4 where the P wave comes right at the onset of the QRS. There is underlying marked sinus arrhythmia with accelerated idioventricular rhythm (AIVR) at a rate of ~80/minute (arising from a septal focus) — such that when the sinus rate is faster (beats #5-thru-8), we have sinus rhythm — and when we have slight slowing of the sinus arrhythmia rate to below ~80/minute — then the accelerated septal focus takes over (beginning with beat #9). Note the sinus P wave peaking back again at the end of the tracing (at the onset of beat #14). So, the mechanism for AV dissociation here is a combination of “default” (when the sinus rate slows to below 80/minute) + “usurpation” (due to the slightly accelerated ventricular septal focus.


"The QRS morphology as Steve and Christopher have described is fairly narrow with left posterior hemiblock (LPHB) morphology, but lacking the RBBB characteristic that is usually seen in V1 with the more typical fascicular ventricular tachycardias...... I imagine, depending on where in the septal the focus is, that you might get a hemiblock pattern with narrow QRS and no RBBB (as we see here)."


Here are more posts on AV dissociation and AV block


AV Dissociation Lecture by K. Wang (28 minutes)




A Mystery Rhythm, Explained by K. Wang's Ladder Diagram.




Atrial Flutter. What else?? (AV dissociation with block)

Monday, July 17, 2017

Wide complex tachycardia at a rate of 270

Unfortunately, this case lacks some of the clinical data, but not so much that we can't learn something from it.

Case

A 50-something male called 911 for central chest pain and palpitations.
PMH: atrial flutter, hypertension, elevated cholesterol
Medications: Digoxin, ramipril, aspirin

The patient was diaphoretic and clammy.  He was hypotensive.

A prehospital rhythm strip was obtained:
A 12-lead is below

A 12-lead was obtained:
Regular Wide Complex Tachycardia
Rate 267, R-R interval 225 ms
What is it? What do you want to do?














There is a wide complex, regular tachycardia at a rate of 267.  The R-R interval is 225 ms.

1. It is regular, so it cannot be atrial fibrillation.
2. It is on the high end of rates for SVT (140-280), so SVT is unlikely.
3. It is too fast for typical ventricular tachycardia, but could be "ventricular flutter," but that is very rare.
4. AV reciprocating tachycardia (AVRT, antidromic) is possible. [WPW with antidromic rhythm: down the accessory pathway (resulting in wide QRS) and up the AV node.]  But this 50 year old has already had cardiac care and does not have a diagnosis of WPW, so that is nearly impossible.

The best clue is the history of atrial flutter and that he is at least supposed to be on Digoxin.

Thus, it is almost certainly atrial flutter with 1:1 conduction at a rate of 267 (interval 225 ms).  The R-R interval would then have to be identical to the atrial flutter interval of 225 ms.

Why is there a wide complex?

Probably because the rate is too fast for one of the conducting bundles.  This looks most like a left bundle branch block, but is not clearly LBBB.

More importantly, the patient is unstable, so electrical cardioversion should be the next step, immediately.

This is the next ECG rhythm strip (unfortunately, no 12-lead).  It seems that there was no time for any intervention by the medics.
Now the atrial (flutter) rate is 290 (not 270, as before) and there is 2:1 block
Ventricular rate is 145
R-R interval here is 414 ms, flutter interval is 207 ms (shorter than before)
The QRS is still wide.
What happened?





Paradoxically, the increased atrial rate is associated with a slower ventricular rate, and probably was the cause of the slower ventricular rate.

A ventricular rate of 290 with 1:1 conduction results in depolarization of the AV node and ventricle every 0.207 seconds (207 milliseconds).   If the AV node takes longer than 207 ms to repolarize (refractory period greater than 207 ms), then at this atrial rate (a beat every 207 ms), only every other (every 2nd) beat can be conducted, and there will be 2:1 conduction.

For an unknown reason, the atrial rate increased and thus the ventricular rate decreased, which is very good for the patient.


Why might this have happened?

Uncertain, but if the patient became more distressed and had increased sympathetic output, then he could have an increased atrial rate.
        However, increased sympathetic tone also increases AV conduction (makes it more "slick," or "greasy").   This could counteract the faster atrial rate and prevent the slowing of the ventricular rate.

Why is this concept important for us?

If you see a patient with atrial flutter with 2:1 conduction and you want to convert the atrial flutter chemically with, for instance, procainamide (or any other type 1 antidysrhythmic), you could convert to 1:1 conduction. How?  Procainamide is used to convert flutter to sinus, but before conversion (or if it is ineffective), it will cause the atrial flutter rate to slow to a rate that makes 1:1 AV conduction possible.

You will have made the situation worse.

Therefore:

If you ever want to convert atrial flutter by giving procainamide or any other Type 1 antidysrhythmic, you MUST give an AV nodal blocker first, or you will make the patient worse.

I always use electricity to convert atrial flutter.  It is safer.


Similarly:

Any patient who is started on a Type 1 antidysrhythmic (flecainide, for example, to control symptomatic PVCs) should be started on a calcium channel blocker such as Diltiazem (or a beta blocker).  If such a patient were to go coincidentally go into atrial flutter, the flecainide would result in slow atrial flutter that could be slow enough to conduct 1:1.   Diltiazem would prevent 1:1 conduction.

Digoxin

This patient is probably on Digoxin for the same reason.  It also slows AV conduction.  It is likely that he stopped taking it and this is one of the reasons for his decompensation.







Saturday, July 15, 2017

An elderly woman with dyspnea, asystolic arrest, resuscitated

911 was called for a very elderly dialysis patient for acute onset of dyspnea.

On arrival, medics found the patient with agonal respirations.  Chest compressions were started and 2 doses of epinephrine givne, and she was found to be in asystole, which then changed to PEA at some point, then to ventricular tachycardia.  A King airway was placed.

This is her prehospital ECG:
What do you think?
My thoughts are below.



On arrival, she was hypertensive and tachycardic.  Due to concern for hyperkalemia, Calcium was given empirically.  Cardiac ultrasound showed poor LV function and normal RV size.  K returned at 5.8 mEq/L (not high enough to be responsible for all of this).

An ED ECG was obtained:
What do you think?


















ECGs:

Prehospital:
--There is sinus tachycardia.
--The large R-wave in V1, with wide S-wave in V5 and V6 shows late forces toward V1 and away from V5 and V6, and is therefore diagnostic of right bundle branch block (RBBB).
--The large inferior S-waves, with a small q- and large R-wave in aVL are diagnostic of left anterior fascicular block.
--(Bifascicular block, RBBB and LAFB).
--Importantly, the PR interval is normal.  If prolonged, there would be so-called trifascicular block.

These findings alone are very suggestive of LAD or left main occlusion.  Every such case I have ever encountered was in a patient with either left main occlusion or LAD occlusion and the patient was near death or post-arrest.

This is a very bad sign, and the ST Elevation in these cases is frequently very subtle.

Finally, there are very large (hyperacute) T-waves in II, III, aVF and in V4-V6.  These are diagnostic of either hyperkalemia or of acute STEMI.


Here are some cases of STEMI with RBBB and LAFB

Wide Complex Tachycardia; It's really sinus, RBBB + LAFB, and massive ST elevation

don't miss this one!




ED ECG:
--Sinus tachycardia with RBBB and LAFB
--There is subtle ST elevation in V2-V5

Here the precordial leads are magnified:
Notice that there is almost 2 mm ST Elevation in V2
2 mm ST elevation in V3
1 mm ST Elevation in V4

RBBB should not have ANY ST elevation, so this is STEMI until proven otherwise.

In fact, in leads with a prominent R'-wave (here, as is usual: V1-V3), there should be ST depression that is discordant to the prominent R'-wave)

Here is an example of RBBB without any ischemia:
Note normal (non-ischemic) ST depression in V1-V3, discordant to positive R'-wave


The ST elevation was not seen.

She had fever and elevated lactate.

Sepsis and pulmonary embolism were suspected.

CT pulmonary angiogram was negative.

After this, she had another brady-asytolic arrest and was resuscitated again.

Another ECG was obtained:
Now the anterior STEMI is obvious
 (in addition to right bundle branch block and left anterior fascicular block)

Further comment on this ECG:
--The ST elevation is greatest in V1
--There is also ST Elevation in lead III, and reciprocal ST depression in aVL
--There is ST depression in V5 and V6


Notice the RBBB with LAFB is gone!  I cannot explain this except to say that any new bundle branch block in any situation can be transient.

One might suspect these findings to indicate an inferior and right ventricular infarct, but a (left ventricular) septal infarct with a wraparound LAD to the inferior wall will give the same pattern and is more likely, especially due to the bifascicular block.


Now the etiology of her entire clinical presentation (except fever) is obvious.

She arrested again before she could get to the cath lab.  So no angiogram was done.



































Wednesday, July 12, 2017

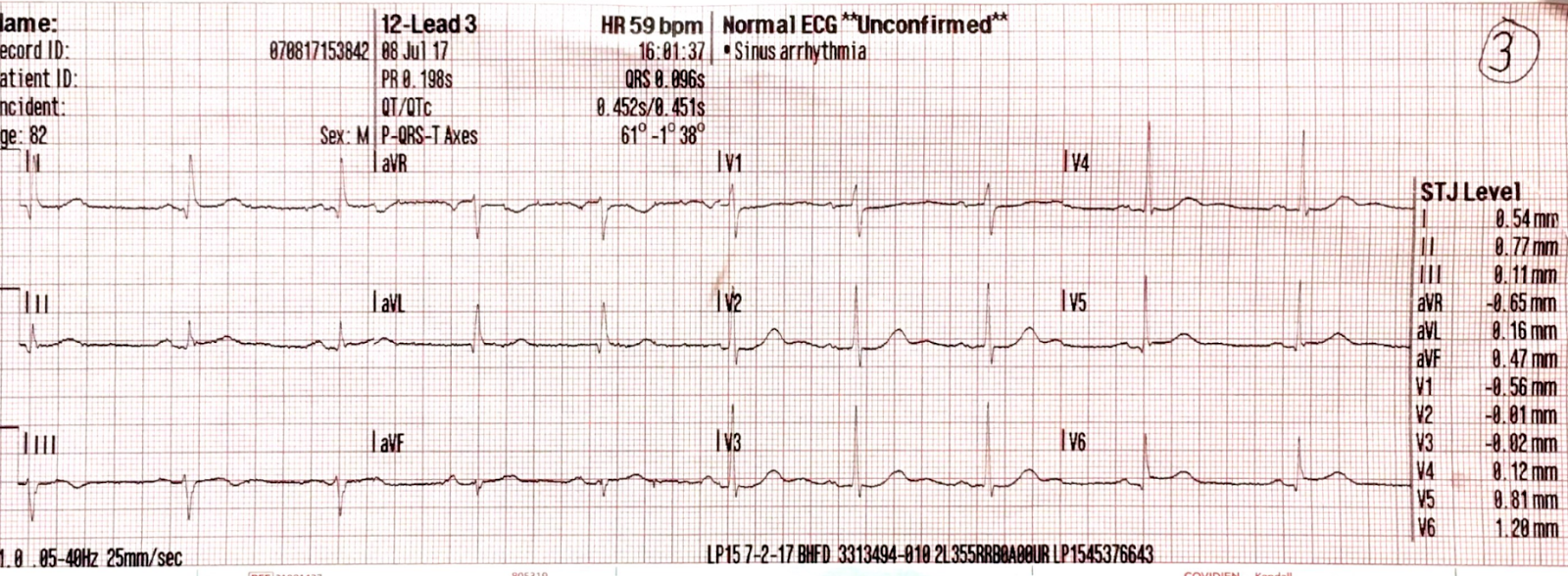

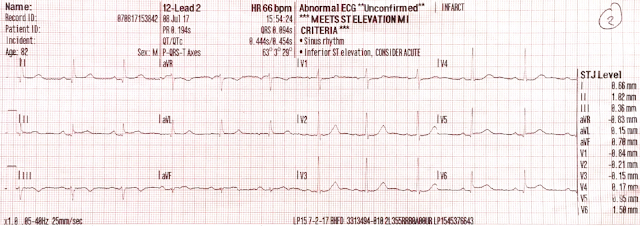

An 82 year old with syncope

An 82 yo male stopped for lunch after cycling. Witnesses reported a syncopal episode lasting approximately 30 seconds. He has a history of prior MI with 3 stents placed. There was no other significant hx.

The patient denied any chest discomfort, dyspnea, or n/v or any complaints and did not wish to go to the hospital.  However, he did not protest transport.

BP was 134/66, and heart rate remained around 60, which he said was normal for him.

A 12-lead ECG was recorded:
Sinus rhythm, rate 64.
There are features here that one can recognize in retrospect, but in a patient with no current symptoms, it is all nonspecific.
For instance, there is a long ST segment and negative T-wave in lead III.  But the QRS axis is also negative, so not truly T-wave inversion.
Lead aVF has a very subtle up-down T-wave
There is a sagging ST segment in lead V3



The medic is very good at recording serial ECGs, and did so this time at 9 minutes even though there were no new symptoms (patient asymptomatic).
Sinus rhythm.
Note there is new ST elevation in lead II, aVF, V5, and V6.
There is also increased sagging of the ST segment in V1-V3.
The computer surprisingly reads "Meets STEMI critiera" !!


The ECG does not, strictly speaking, meet STEMI criteria: note on the side there are measurements of ST elevation at the J-point: it is correctly reading more than 1 mm ST elevation in 2 leads (II and V5), but these are not consecutive leads. STEMI criteria require the findings to be present in at least 2 consecutive leads.


The medic was now very worried in spite of absence of symptoms, and recorded another ECG 6 minutes later:

Now the T-wave in lead III is much less negative.
There appears to be LESS ST elevation in II, V5, and V6


The medic noticed these dynamic findings and activated the cath lab!

They were headed to a non-PCI center, so activating meant activating a transfer.  But they were too close to bypass the smaller hospital, so they stopped and the patient had an immediate ECG in the ED, still with no symptoms!!:
Atrial flutter with slow and variable conduction
Obvious inferior - posterior - lateral STEMI
Note that inferior T-waves have "pseudonormalized" (become upright)
See here for more on pseudonormalization


The patient was immediately transported to the PCI hospital, where an ostial RCA 95% thrombotic occlusion was found and opened and stented.

Comment

Should we get serial ECGs on asymptomatic syncope patients?  Maybe.  The literature on serial ECGs, which is pretty old, would say that among patients who are unlikely to have ACS, or at least dynamic ACS, it takes more resources than it is worth.  One should clearly get serial ECGs on a patient with ongoing chest pain, but for a single episode of syncope without ongoing symptoms?

But in the ambulance, the ECG leads may remain attached, so why not record multiple tracings?

In contrast, in the ED, there is much demand for the ECG machine and tech, and it is more use of resources to keep the machine attached and record multiple tracings, so I would not advocate for that.


Learning Points

1. If it does not strain resources, record serial ECGs whenever there is any suspicion for ACS.

In this case, suspicion was very low but the medic is an incredibly skilled ECG reader (I know him) and he noticed these slight abnormalities which made him record more and then activate the cath lab.

2. In this case, the computer was very sensitive for STEMI.





Friday, July 7, 2017

Acute Respiratory Distress and Pulmonary Edema

A 60-something called 911 for respiratory distress of acute onset.  Medics found him hypoxic with wet sounding lungs.  He was put on CPAP with improvement.  BP was 250/140 by manual measurement.

He was brought to the ED.  There was vomitus in his CPAP mask, and he began vomiting again.

He was intubated before he could even be placed on a cardiac monitor.

A bedside echo was performed.


There is an irregularly irregular rhythm with rapid response.
The myocardium is very thick (concentric ventricular hypertrophy)
There is very little ventricular filling, and thus very little cardiac output.
There is good LV function

There were many B lines and a very filled inferior vena cava.


Obviously, even without an ECG or monitor, this is atrial fibrillation with rapid ventricular response.

What do we do?

1.  Immediately cardiovert?  This will restore the important atrial contribution to ventricular filling, and we can see that ventricular filling is a big issue.  This will only work reliably in paroxysmal atrial fib.  Chronic atrial fib is unlikely to convert.  Furthermore, if it is chronic, then there is a stroke risk.
2. Slow the rate with an AV nodal blocker?  Diltiazem?  Esmolol?   This will not restore the atrial contribution, but will slow the ventricular rate and allow for more filling.
3. Give diuretics? This will worsen ventricular filling.

Figuring out whether this is chronic or paroxysmal is important.

The big question is: What initiated the critical situation?

1.  The patient has concentric LVH and suddenly developed atrial fibrillation.
Pulmonary Edema developed due to high left sided pressures due to poor forward flow due to:
          a) No atrial contribution to ventricular filling, and
          b) A rate too rapid for ventricular filling, this patient who has a stiff and noncompliant ventricle suddenly has a precipitous drop in cardiac output and develops pulmonary edema.

Catecholamine surge leads to peripheral vasoconstriction and very elevated BP (in spite of poor cardiac output), further diminishing cardiac output.

2.  Alternatively, there is chronic atrial fibrillation and something else caused the rapid response:
a. Patient became septic, dehydrated, had GI Bleed, etc.  However, this would lead to shock but not pulmonary edema.  And the inferior vena cava would show evidence of volume depletion.

3. The patient has chronic atrial fib and now has fluid overload.  But in such a case, the ventricular cavity would be dilated and filling well.

4. The patient has a sudden change in ventricular function (e.g., ischemia, ACS).  This is not supported by this echo which shows good LV function.

5. Valvular dysfunction: the only valvular dysfunction that is associated with a small ventricle is mitral stenosis.  This is a possibility and would be associated with atrial fibrillation and pulmonary edema.  However, it is relatively rare in the U.S. and it is also more likely to be a chronic problem.

Aortic insufficiency, Aortic stenosis, and Mitral insufficiency are all associated with a well-filling ventricle.


The typical patient who has chronic atrial fibrillation and has a rapid ventricular response is ill with second pathology that overlays the atrial fib, and cardioversion will not work and will not correct the situation.  Most of these patients have sepsis, hypoxia, resp failure, GI bleed, dehydration.  They are older and have become ill more slowly.  Their ventricles are usually dilated, not small and with concentric LVH.  This represents about 80-90% of ED patients with atrial fib and RVR who are ill.

But a younger patient with sudden symptoms, a tiny ventricle, and severe pulmonary edema is likely to have paroxysmal atrial fib and to benefit from cardioversion.

The risk of stroke is much lower as well.

Case progression

The patient was cardioverted after etomidate sedation with 200 J of biphasic synchronized cardioversion.

Here is the post cardioversion ultrasound:



Cardiac output is far better.  Filling is far better.

His clinical condition rapidly improved.

Here is the post conversion ECG:
Sinus rhythm.  LVH with typical ST-T (repolarization) abnormalities.




His blood pressure came down to 134/92, 158/97 without any ED medications.

This turned out to be his first episode of atrial fibrillation.  So, as expected, it was paroxysmal and was the initiating factor to his pulmonary edema.

Cardioversion was the exact right thing to do.

The patient did well.

Learning Points.

1. Even without the past history, one can make a very good assessment as to the chronicity of atrial fibrillation in critically ill patients.

2. Cardioversion can restore the atrial contribution to ventricular filling.

3. A slower rate can improve cardiac output.

4. Patients with LVH have very stiff ventricles that require particularly high filling pressures.

Wednesday, July 5, 2017

A 60-something dialysis patient with complete heart block: ultrasound before and after treatment

A 60-something dialysis patient complained of weakness.  He was hypoxic and in some respiratory distress.


He had these prehospital ECGs:
Rhythm Strip only, with very slow rate.  There appear to be some P-waves that are dissociated from the QRS.  This appears to be complete heart block with ventricular escape.

More of the same, but with some narrow complex beats, perhaps junctional, or perhaps with some conduction.
The exact ECG diagnosis is not as important as the management.


A 12-lead was recorded:
P-waves are difficult to consistently identify, but there is a wide complex ventricular escape, with a RBBB and LAFB morphology, consistent with a posterior fascicle escape.
Notice also the deep T-wave inversions.
These are common in third degree heart block but do not usually represent ischemia due to ACS.

Syncope with 3rd degree heart block often has huge inverted T-waves.


He arrived in the ED without any IV access. Obtaining access was very difficult and the patient was refusing many attempts.

Since hyperkalemia was presumed, 0.50 mg intramuscular terbutaline while attempting IV access.

A bedside ultrasound was done:


Here you can see the mitral valve opening at an irregular rate that is faster than the left ventricle, and with the two dissociated.  This confirms third degree (complete) AV heart block.


Finally, an ultrasound guided IV was obtained and he given 3 g of calcium gluconate.

His heart rate increased, with this subsequent ultrasound:


Rate is irregular and much faster now.  Cardiac output is much higher.

Symptoms resolved.

He was also shifted with insulin, and glucose.


A repeat ECG was recorded:
Sinus rhymth with PACs and Left Bundle Branch Block
Normal ST-T for LBBB
Previous ECGs showed both sinus rhythm and atrial fib
They showed LVH without LBBB


The K returned at 6.6 mEq/L.  The repeat value 34 minutes later was 6.0 mEq/L.  The value prior to obtaining blood may have been a bit higher than 6.6.

There was a good outcome.

Learning points

Bradycardia and block may be due exclusively to hyperkalemia, and reversed by Calcium.  There is no dose of calcium too high for such critically ill patients.

See this case in which I gave 15 grams of Calcium gluconate:

Weakness, prolonged PR interval, wide complex, ventricular tachycardia


Monday, July 3, 2017

A 50-something woman with chest pain and dyspeoa (an Aussie)

This case comes from Max Nelson, a paramedic in Australia.

See also this post:

40-something with severe CP. True + vs. False + high lateral MI. ST depression does not localize.


Case

I was dispatched to a middle age woman (~50YO) with chest pain and nausea.

Exam: pt is huddled around toilet bowel, naked and shivering. Pt appears “well” but with pallor.

Hx: pt was woken from sleep after midnight with chest aching, dyspnoea and significant nausea. Pt moved to the toilet and had one bilious vomit. The ambulance was called and arrived approx 20 minutes later.

Signs and symptoms: nausea, dyspneoa, cold, pallor.

Now states chest pain/tightness has resolved (gone).

Hx of pain:
D- aching
O- tonight roughly 30 minutes before assessment. First experienced 2 days ago while “rushing at work” with several intermittent pains since then.
L- central chest
O- nausea, dyspnoea. Unchanged on inspiration, palpation, movement.
R- nil radiation, relieved tonight with vomit, relieved past two days with rest, rated 7/10 (not current).

Risks: postmenopausal woman, paternal CABG. Non smoker.

Allergy: penicillin

Medication: anti-depressant

Past medical history: depression

VSS: GCS 15, PERRLA, 140/80, 96BPM, 22RPM, 98% ORA, 35.5*C, 6mmol/L.

Here is the ECG, after patient's pain has resolved:
Click here to enlarge
Automated interpretation: NSR, Normal
What do you think?
















Smith comment: I see significant ST depression in inferior leads.    Remember that when there is inferior ST depression, it is NOT "inferior ischemia," as subendocardial ischemia does not localize.  When you see this, it is nearly always reciprocal to ST elevation in aVL that may be very difficult to appreciate, often because of very low voltage in aVL.  Indeed, if you look at aVL, the QRS voltage is not even 0.2 mV (2 mm) and so the ST elevation (less than 0.5 mm) then is proportionally significant.

Also, the T-waves are down-up, which is particularly indicative of ischemia (or of hypokalemia, if QT interval is very long -- really a QU-interval).

See these posts about down-up T-waves.

Case continued

Patient is moved to ambulance with wheelchair, develops pain and second ECG is recorded roughly 7 minutes later (with pain):
Click here to enlarge
Automated interpretation: NSR, ST depressionWhat do you think?



Smith comment:

The "inferior ST depression" is more pronounced.  There is now higher T-wave voltage in V2-V4.  It is beginning to look like an LAD occlusion, proximal to the first diagonal.


Mobile Intensive Care Ambulance (MICA) requested for worsening depression.

Two further ECGs are recorded roughly 8 minutes apart en route to RV:



Click here to enlarge
Automated interpretation: "NSR, ST depression, consider subendocardial ischaemia"


Smith interpretation: ST depression is deeper.  STE in aVL is higher.  There is new ST elevation in V1 and V2, and a bit in aVR.  T-waves are now hyperacute in V1-V5.  There is ST depression now in V5 and V6.
This is a proximal LAD occlusion and may in fact be proximal to the septal perforator.  This results in ST elevation in V1 and aVR, and can also result in reciprocal ST depression in V5 and V6, which are opposite the septum.


4th ECG:
Click here to enlarge
Not much different than the 3rd


Further ECGs (not shown) displayed developing elevation in anterior leads leads with runs of ventricular bigeminy.


Outcome
This woman had thrombotic occlusion of the LAD

Smith: It was reportedly of the mid-LAD, though I am skeptical, and suspect that the report was miscommunicated because the ECG clearly shows high lateral involvement.

Her clinical course was aspirin, GTN, opioid analgesia, anti-emetic, heparin bolus pre-hospital with uncomplicated angiogram and stent at cath lab. Discharged home two days later with full recovery.

Some thoughts on the ECG from Max:

  • ECG 1: bad tracing on limb leads but inferior ST depression is the most obvious abnormality here. Both the poor tracing and ischaemic pattern should prompt serial ECGs. aVL is concerning: there is very slight ST elevation that, when interpreted in the context of the QRS amplitude, is not so slight.
  • ECG 2: there is obviously a better trace and there is progression of the inferior depression (most notable in aVF). There is also progression of the elevation in aVL, which, at this point, is diagnostic of MI. Also note the changes in anterior T-wave morphology and the gradual straightening of the ST segment in the anterior leads.
  • ECG 3, 4: obvious progression in above findings. Now with some elevation in precordial leads and notably in aVR. Low lateral depression (V5, V6)

There is very little to say about this except to highlight the importance of serial ECGs. This woman is obviously very unwell but it is feasible that, with early morning night shift brain, her symptoms may have been interpreted incorrectly and the history of the pain brushed over.

In addition to that, the computer did not interpret these as “****STEMI****, acute infarct, etc.” Don’t trust the computer! It’s generally pretty good but it cannot see your patient. You do not need to be able to pick which vessel or to able to intimately explain the changes of the ECG. Simply recognising something that is abnormal/changing is better than relying on a computer. Do not take these people to a non-PCI capable hospital!

I want to commend Max on a great job.

Learning Points:
1. Recognize that "inferior ST depression" is reciprocal to high lateral MI (aVL)
2. Do serial ECGs
3. Don’t trust the computer interpretation.

Recommended Resources
